Gluing Machine with Conveyor

Gluing Machine with Conveyor
Gluing Machine with Conveyor
Send Inquiry
Product Code : 03
Product Description

Gluing Machine with Conveyor is used for cold glue. The perfectly designed roller and bottom plate enables pasting of thick paper sheet in same settings. These rollers can be easily detachable for cleaning of the machine. It has a heavy duty frame structure and wall which provide full space for cleaning. Moreover, it has easily removable bottom tray for excess glue collection and reuse. Available in different specifications, this Gluing Machine with Conveyor is offered to our customers at very reasonable rates.

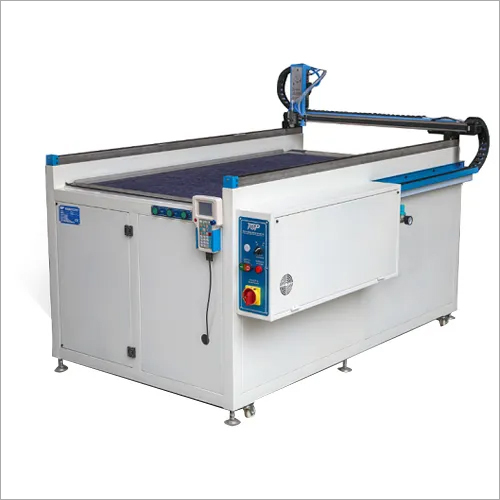

CNC auto gluing machine is a high-performance equipment which is developed by our own company. By adopting international advanced CNC technology, it’s very easy to operate. Widely be used in leather shoes, sport shoes, leather out-sole, rubber out-sole, bags, wallets, gloves and exercise equipments etc.

  • Easy to operate, you can set a programme by the control box or just programme through CAD' CORELDRAW or some other software then transfer to PLT format by computer , and download into the machine.
  • Maximum four-axis control, forward-and-backward, right-and-left, camberd surface is also ok.
  • High speed, 5-6times than to manual.
  • High precisely, Homogeneous surface, no stack glue.
  • Glue bucket is completely sealed, glue is never dry. in one hand, to reduce waste of glue,in another, to avoid environmental pollution by noxious gas.
  • Many kind of glue are applicative, such as all-purpose adhesive, pu glue, neoprene, latex and most of liquid glue.

Machine Configuration :

Model

TOP8060

Dimension

1200*1500*1300MM

Voltage

Single phase 220VAC

Power

1kw

Movement

X,Y,Z 3 axis

Stroke

X axis600mm


Y axis800mm


Z axis100mm

Speed

0-800mm/s

Working pressure

4-6kg (compressor is provided by the buyer)

N.W

300kgs

Capacity of glue tank

10L
